Edge Closed
EDGE CLOSED — series is a distinctive design that provides vibrant illumination for pathways, landscape zones, and various public areas.
-Reduced glare through a concealed light source.
-Enhanced linear forward light distribution option with
complete cut-off and minimized stray light.
-Simple installation and maintenance.
-Contemporary and refined design that adds a distinctive touch to outdoor applications.
Technical Data
| PHYSICAL | |
| Body | Aluminium Extruded Profile |
| Finish | Polyester Powder Coated |
| Dimensions | L100xW150xH1000mm |
| OPTICAL | |
| Diffuser | Clear Polycarbonate |
| Light Emission | Indirect Light Distribution |
| ELECTRICAL | |
| Light source | LED |
| Power | 2x10W |
| Light source lumen | 2x1200lm |
| CRI | >80 |
| CCt | 3000K-4000K-5000K |
| Driver | Electronic Included |
| 220-240 VAC Non-Dimmable Driver | |
| 1-10V or DALI available on request | |
| Operating Temperature | -40°C ~ +50°C |
| Humidity | 10% ~ 90%RH |

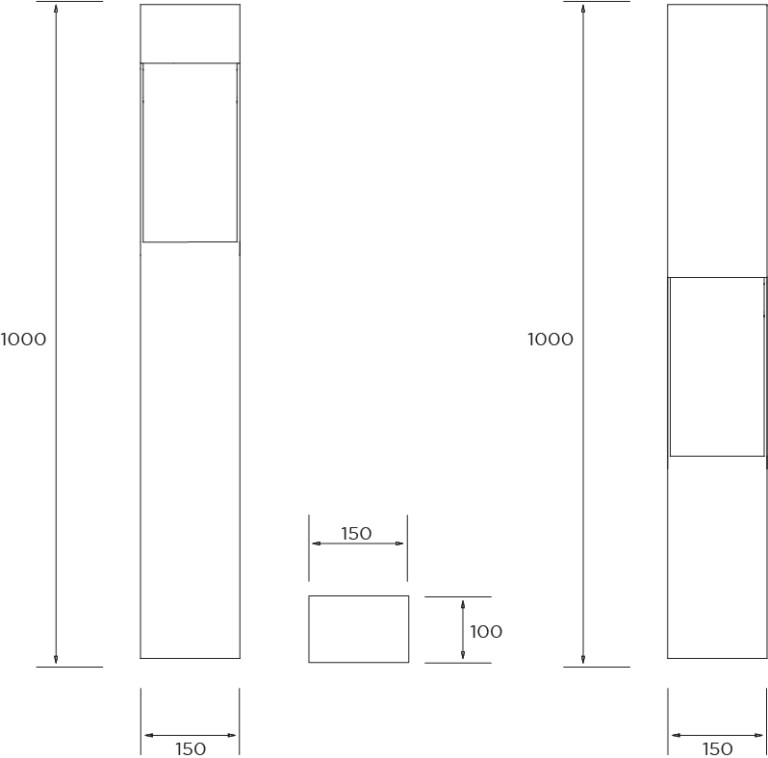

Technical Drawing
